How do air-operated double diaphragm (AODD) pumps work

How do air-operated double diaphragm (AODD) pumps work, and why do they deliver major Rand savings for South African industries?

Air-operated double diaphragm pumps (also called AODD or diaphragm pumps) are simple, robust positive-displacement pumps powered only by compressed air – no electricity required. Here is exactly how they work:

At the heart of the AODD pump are two flexible diaphragms (made of rubber, Teflon®, thermoplastic or other materials) connected by a shaft or linkage. These diaphragms completely separate the air side from the liquid side, eliminating seals and leak risks.

Compressed air enters one air chamber through an advanced air-distribution valve. This pushes the first diaphragm outward, displacing liquid on the fluid side and creating discharge pressure. At the same time, the second diaphragm is pulled inward (via the connecting shaft), creating suction on its liquid side. Ball or flap check valves ensure one-way flow: suction valves open to draw fluid in while discharge valves push fluid out.

When the first diaphragm reaches the end of its stroke, the air valve automatically shifts. Air now powers the second chamber while the first exhausts. The process reverses instantly, producing a smooth reciprocating action. Flow is pulsating but easily controlled by simply adjusting air pressure – no VFDs or complex electronics needed.

The entire cycle is self-priming (even dry), can run dry indefinitely without damage, handles viscosities from thin solvents to thick slurries, and tolerates abrasives, corrosives and large solids. SAMOA PIVOT Series diaphragm pumps add a patented air valve that optimises efficiency, cuts air consumption, reduces vibration and prevents stalling. Vesta models feature bolted construction for zero leaks and easy maintenance.

How much can South African companies save using diaphragm pumps ? In mining, chemical plants, wastewater treatment and manufacturing, these pumps slash electricity costs (critical with Eskom tariffs), eliminate seal failures and downtime (which can cost hundreds of thousands of Rand per year), and reduce maintenance labour. Lower air consumption (especially on PIVOT and DirectFlo AODD pump models) directly cuts compressor energy bills. Low initial investment plus long service life delivers true low cost of ownership – many South African plants recoup the cost in months while gaining explosion-proof (ATEX) safety in hazardous areas.

What exactly does the solution entail, which diaphragm pumps are used, and why are they optimal for South African conditions?

Monitor Pumps supplies complete AODD systems (pump, air controls, hoses and accessories) after a free site assessment. The flagship solutions are SAMOA PIVOT Series air-operated double diaphragm pumps.

SAMOA PIVOT AODD pump ( https://www.monitorpumps.co.za/pneumatic-diaphragm-pumps/ ) models feature an advanced air-distribution system that dramatically improves air efficiency, reduces wear and minimises pulsation – perfect for continuous chemical transfer or abrasive slurries. Fluimac diaphragm pumps offer robust bolted construction, self-priming, dry-run capability and easy maintenance.

These are optimal because they are seal-less (no costly seal replacements), explosion-proof for mining and chemical plants, portable, and handle anything from acids and paints to mining slurries with solids up to 70 mm. They require no electricity, fit harsh South African environments, and deliver variable flow simply by adjusting air pressure. The result: reliable operation, minimal downtime and the lowest total cost of ownership.

What different types of air-operated diaphragm pumps are used across South African industries, and what does each type do best?

Monitor Pumps stocks a full range of AODD pumps tailored to local needs:

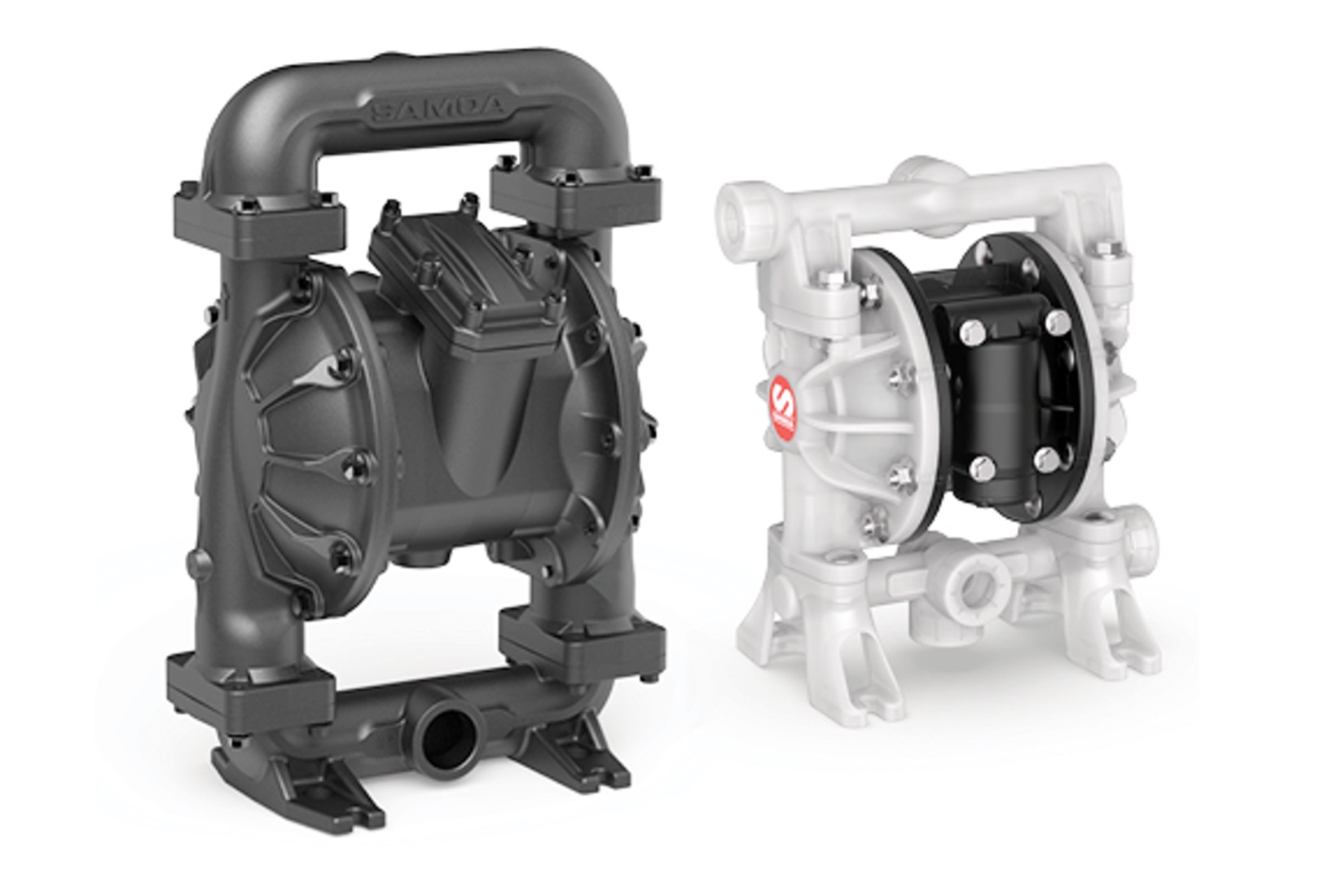

• SAMOA PIVOT Series double diaphragm pumps– Premium air-efficient pumps for chemical processing, paints/coatings and aggressive fluids. The advanced air valve cuts consumption, reduces vibration and prevents stalling – ideal for 24/7 operations.
• SAMOA DirectFlo Series diaphragm pumps – Compact, low-air-consumption models for space-restricted applications or smaller transfer jobs while still handling corrosives and abrasives.
• Fluimac standard AODD Pump (metal or plastic) – Versatile all-rounders for general dewatering, wastewater, agriculture and lubrication. Economical, easy to maintain and available in hygienic versions for food & beverage.
• Vesta Flap-Valve AODD Pump– Specialised for heavy solids (sand, stones, trash up to 70 mm). Perfect for mining dewatering, wastewater and abrasive slurries where ball-valve pumps clog.

All types share the same core advantages: self-priming, dry-run capability, low shear, ATEX certification and simple maintenance. Materials (rubber, Teflon, Santoprene® etc.) are matched to your fluid for maximum life.

Why should South African plant operators contact Monitor Pumps right now?

Because a no-charge site audit and demonstration from Monitor Pumps & Systems can show you exactly how much you are losing on energy, maintenance and downtime – and deliver the perfect AODD pump solution with payback often in months. As South Africa’s leading fluid-handling specialists, we stock the full SAMOA , Fluimac and Vesta range locally, provide fast delivery, spares and expert technical support from Johannesburg.

Our team will visit your plant at no cost, assess your fluids and challenges, calculate exact Rand savings and recommend the optimal pump. We handle everything from small dosing units to large mining dewatering pumps.

Call +27 11 618 3860 or email sales1@monitorpumps.co.za today. Visit www.monitorpumps.co.za to download AODD guides and book your free assessment. Don’t let inefficient pumps keep draining your profits – contact Monitor Pumps now and start pumping smarter, more reliably and more cost-effectively with air-operated diaphragm pumps.
