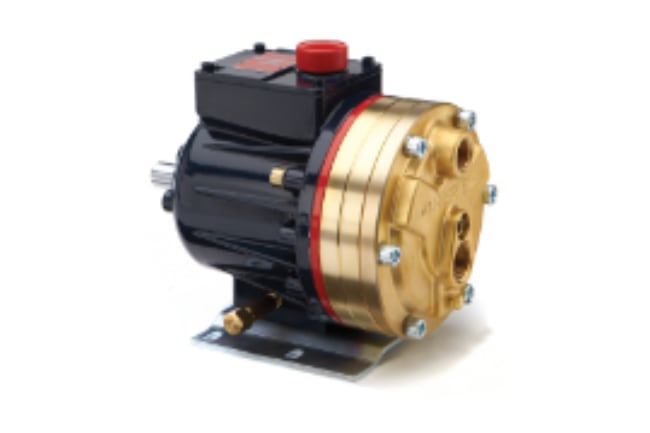

Hydra Cell High Pressure Diaphragm Metering Pumps

Hydra-Cell Metering Solutions meet and in most cases exceed API 675 performance standards with virtually pulse-less, linear flow. Utilizing the most current technologies ensure the pumps achieve superior levels of accuracy, repeatability and linearity, while delivering precise, constant flow. This revolution in metering employs the latest available means of electronic flow control to replace antiquated, inaccurate stroke adjusters.

See Products

Design Advantages

  • Seal-less design separates the power end from the process liquid end, eliminating leaks, hazards, and the expense associated with seals and packing.
  • Low NPSH requirements allow for operation with a vacuum condition on the suction – positive suction pressure is not necessary.
  • Can operate with a closed or blocked suction line and run dry indefinitely without damage, eliminating downtime and repair costs.
  • Unique diaphragm design handles more abrasives with less wear than gear, screw or plunger pumps.
  • Hydraulically balanced diaphragms to handle high pressures with low stress.
  • Provides low-pulse, linear flow due to its multiple diaphragm design.
  • Lower energy costs than centrifugal pumps and other pump technologies.
  • Rugged construction for long life with minimal maintenance.
  • Compact design and double-ended shaft provides a variety of installation options.

Common Applications

  • Coating
  • Dosing
  • Filling
  • Filtering
  • Injecting
  • Metering
  • Mixing
  • Printing
  • Spraying
  • Transferring
