Description
Hydra-Cell Pro® Diaphragm Pumps
Advanced, hydraulically-balanced diaphragm pumps that deliver seal-less, leak-
free reliability, smooth linear flow and lower lifetime cost of ownership.
API 674 & API 675 PUMPS | INDUSTRIAL | PROCESS | METERING & DOSING
Pressures up to 310 Bar
Flows up to 764 L/min
Improve your process and productivity with patented Hydra-Cell® Pro technologies
Wanner Hydra-Cell® Pro seal-less pump technologies deliver the highest levels of volumetric and energy efficiencies across a full rpm range.

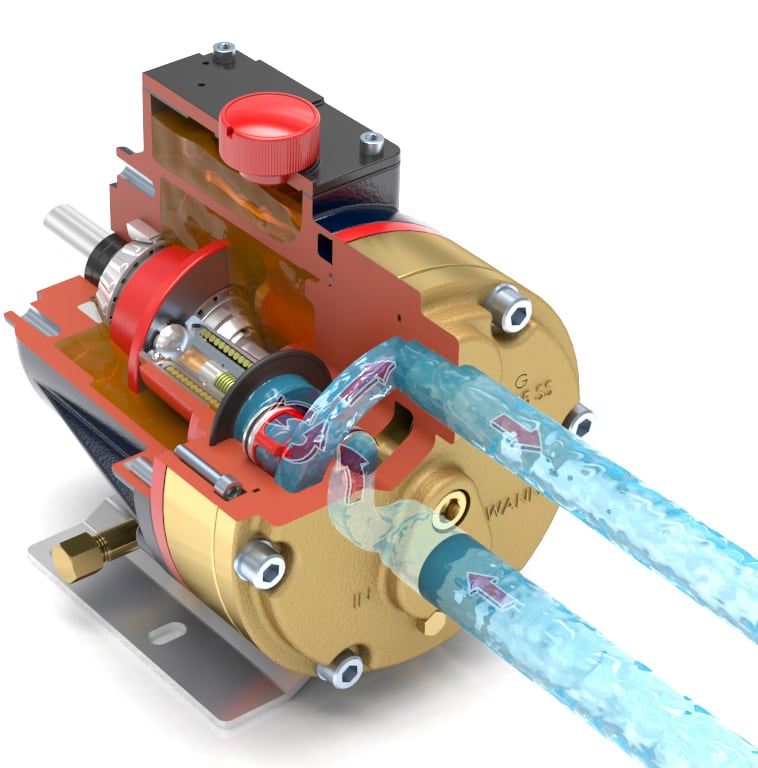

Multiple hydraulically-balanced diaphragms in a single pump head flex without stress and deliver virtually pulse-less flow.
Seal-less design eliminates leaks, hazards, and the expense associated with seals and plunger packing.
Patented ADPC (Advanced Diaphragm Position Control) and hydraulic oil management system protect diaphragms under closed or restricted inlet conditions.
Can run dry indefinitely without damage to the pump.
Pumped fluids are 100% contained eliminating environmental and contamination risks.
Exceed API 674 / 675 standards for accuracy, linearity, and repeatability.

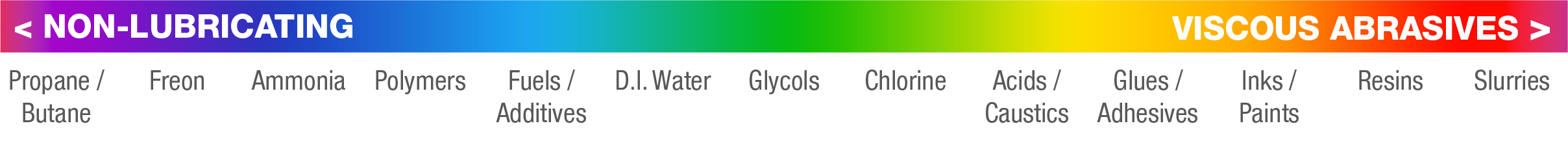

Reliably handles a wide range of liquids, viscosities and shear sensitivities, temperatures, corrosive fluids, abrasives, slurries and particulates that would damage other pumps.
100% tested. Every pump is tested before shipping up to 2 hours for full flow at rated pressure and flawless operation.
